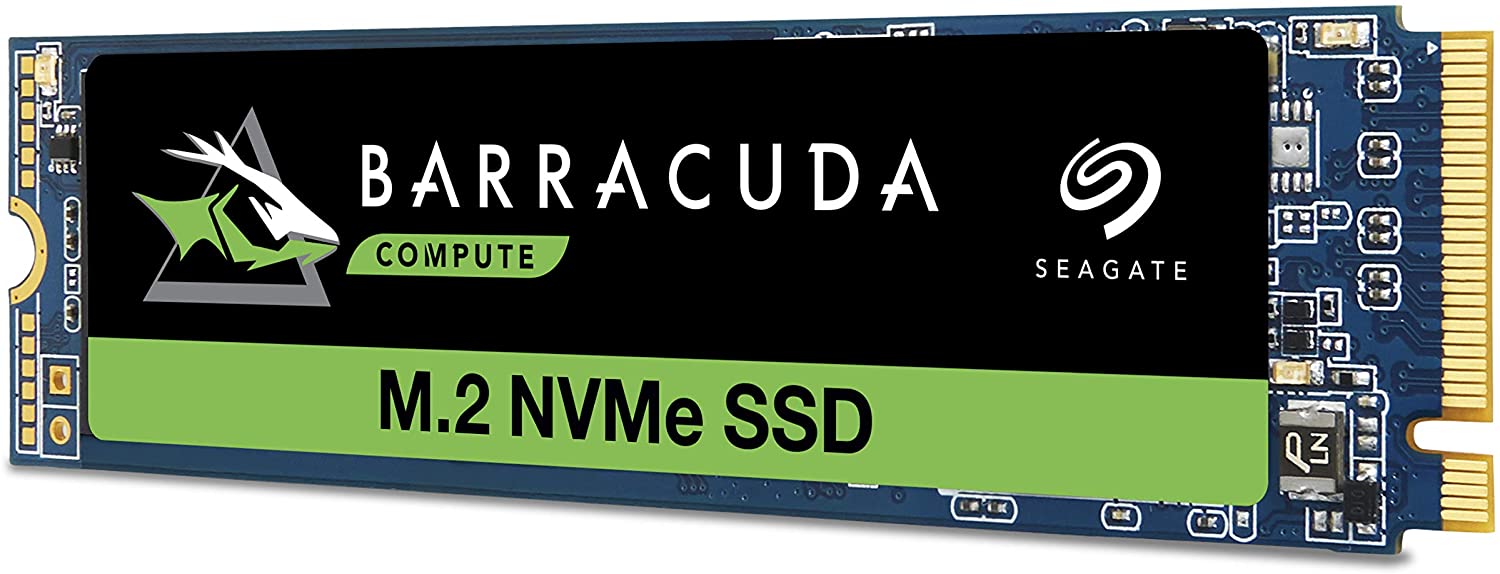

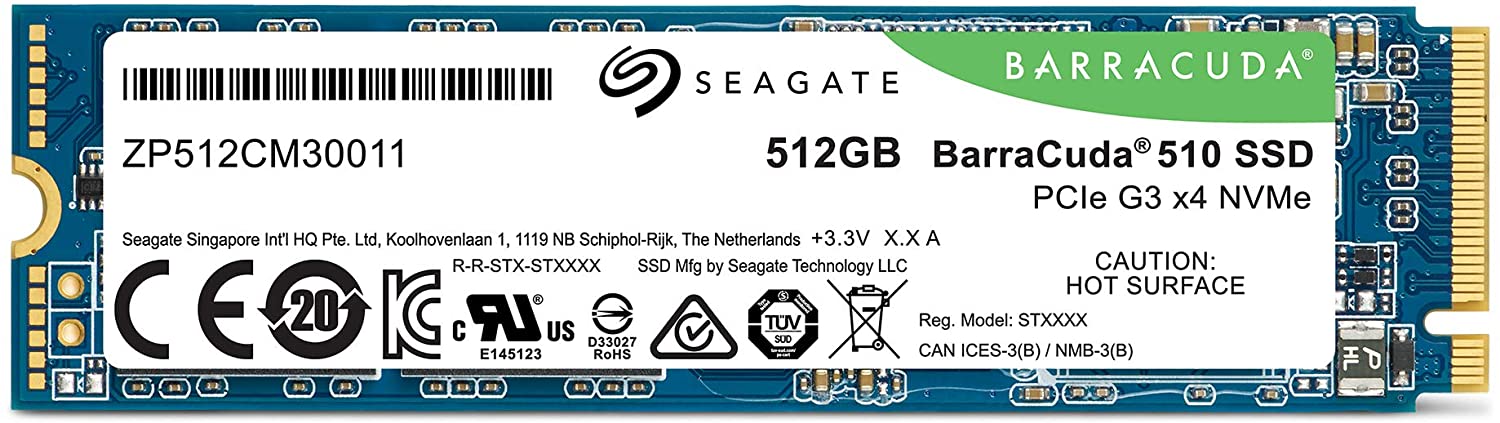

Seagate ZP512CM30041 Key Advantages
Amazing speed with next-level 3D TLC NAND and a PCIe® Gen3 ×4, NVMe™ 1.3 unlock sequential read/write speeds of up to 3,400/2,180 MB/s
The trusted dependability of the BarraCuda brand with a 5-year limited warranty, and MTBF of 1.8M hours.
Amazing versatility with capacities of 250 GB to 1 TB lets you pick the right drive for the job and budget
Slim form factor with single-sided M.2 2280 for ultra-thin/ultra-small laptops, mini PCs, and desktop PCs
Low power consumption with up to 5.3W active power and multiple low power modes make for longer battery life and cooler running speeds
| Specifications |
1 TB |
512 GB |
500 GB |
256 GB |
250 GB |
| Standard Model (TCG Pyrite) |
ZP1000CM30001 |
– |
ZP500CM30001 |
– |
ZP250CM30001 |
| SED Model (TCG Opal) |
– |
ZP512CM30031 |
– |
ZP256CM30031 |
– |
|
Interface |
PCIe Gen3 ×4, NVMe 1.3 |
PCIe Gen3 ×4, NVMe 1.3 |
PCIe Gen3 ×4, NVMe 1.3 |
PCIe Gen3 ×4, NVMe 1.3 |
PCIe Gen3 ×4, NVMe 1.3 |
| NAND Flash Memory |
3D TLC |
3D TLC |
3D TLC |
3D TLC |
3D TLC |
| Form Factor |
M.2 2280-S2 |
M.2 2280-S2 |
M.2 2280-S2 |
M.2 2280-S2 |
M.2 2280-S2 |
| Performance |
| Sequential Read (Max, MB/s),
128KB1 |
3,400 |
3,400 |
3,400 |
3,100 |
3,100 |
| Sequential Write (Max, MB/s),
128KB1 |
3,000 |
2,180 |
2,400 |
1,050 |
1,200 |
| Random Read (Max, IOPS), 4KB
QD32 T81 |
600,000 |
350,000 |
410,000 |
180,000 |
210,000 |
| Random Write (Max, IOPS), 4KB
QD32 T81 |
600,000 |
530,000 |
540,000 |
260,000 |
280,000 |
| Endurance/Reliability |
| Total Bytes Written (TB) |
640 |
320 |
320 |
160 |
160 |
| Mean Time Between Failures (MTBF, hours) |
1,800,000 |
1,800,000 |
1,800,000 |
1,800,000 |
1,800,000 |
| Warranty, Limited (years) |
5 |
5 |
5 |
5 |
5 |
| Power Management |
| Active Power, Average (W) |
5.3 |
4.2 |
4.6 |
3.0 |
3.0 |
| Idle Power PS3, Average (mW) |
20 |
16 |
16 |
16 |
16 |
| Low Power L1.2 mode (mW) |
2 |
2 |
2 |
2 |
2 |
| Environmental |
| Temperature, Operating Internal (°C) |
0 to 70 |
0 to 70 |
0 to 70 |
0 to 70 |
0 to 70 |
| Temperature, Non-operating (°C) |
–40 to 85 |
–40 to 85 |
–40 to 85 |
–40 to 85 |
–40 to 85 |
| Shock, Non-operating: 0.5 ms (Gs) |
1,500 |
1,500 |
1,500 |
1,500 |
1,500 |
| Special Features |
| TRIM |
Yes |
Yes |
Yes |
Yes |
Yes |
| S.M.A.R.T. |
Yes |
Yes |
Yes |
Yes |
Yes |
| Halogen-free |
Yes |
Yes |
Yes |
Yes |
Yes |
| RoHS compliance |
Yes |
Yes |
Yes |
Yes |
Yes |
| Physical |
| Length (mm/in, max) |
80.15 mm/3.156 in |
80.15 mm/3.156 in |
80.15 mm/3.156 in |
80.15 mm/3.156 in |
80.15 mm/3.156 in |
| Width (mm/in, max) |
22.15 mm/0.872 in |
22.15 mm/0.872 in |
22.15 mm/0.872 in |
22.15 mm/0.872 in |
22.15 mm/0.872 in |
| Height (mm/in, max) |
2.23 mm/0.087 in |
2.23 mm/0.087 in |
2.23 mm/0.087 in |
2.23 mm/0.087 in |
2.23 mm/0.087 in |
| Weight (lb/g) |
8.7 g/0.019 lb |
6.9 g/0.015 lb |
8.7 g/0.019 lb |
6.5 g/0.014 lb |
8.7 g/0.019 lb |
